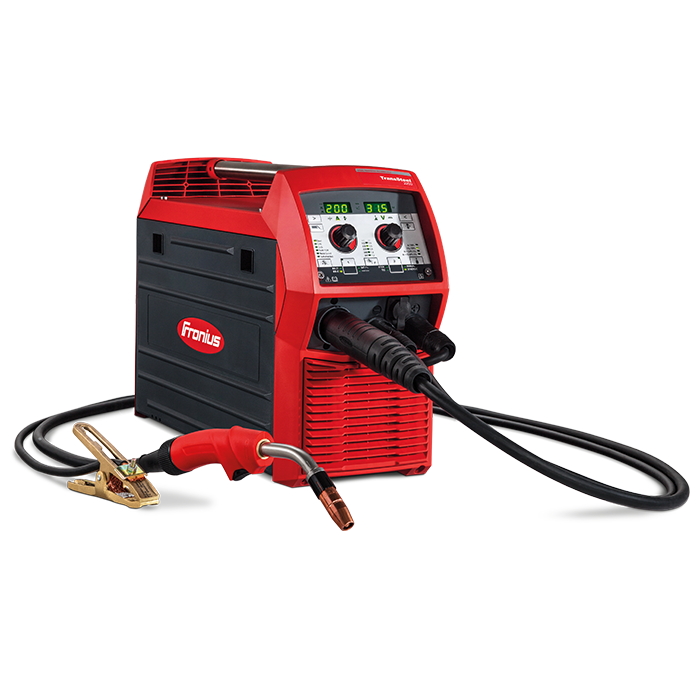

Fronius TransSteel 2200 3-in-1 Multi-Process Compact Welding Machine - FREE SHIPPING*

Both packages are in stock and ready to ship!

WHAT'S IN THE BOX?

• TransSteel 2200C MV/B  (4,075,221,631)
• Power Adapter 6-50p (42,0440,0227)
• 120v Power Cable NEMA 5-20 (43,0004,5668)
• 120v Power Cable NEMA 5-15 (43,0004,5666)
• 220/230v Power Cable NEMA L6-20 (43,0004,5801)
• Ground Clamp with Cable 4m/13ft (43,0004,0479)
• Electrode Holder w/ Cable 4m/13ft/200A (43,0004,0478)
• Flowmeter w/ gas Adapter (42,0440,0002)
• MTG 320i MIG Air-cooled torch (15ft) (4,036,407)
  (comes preset with .035 consumables and liner. Other size consumables are available for purchase)
  • 1x 40,0002,0054,005 – Steel Inner Liner C (.035/.040”)
  • 1x 44,0350,3317 – Clamping Piece (.035/.040”)
  • 1x 42,0001,6464,10 – Contact Tip .030”
  • 1x 42,0001,6465,10 – Contact Tip .035”

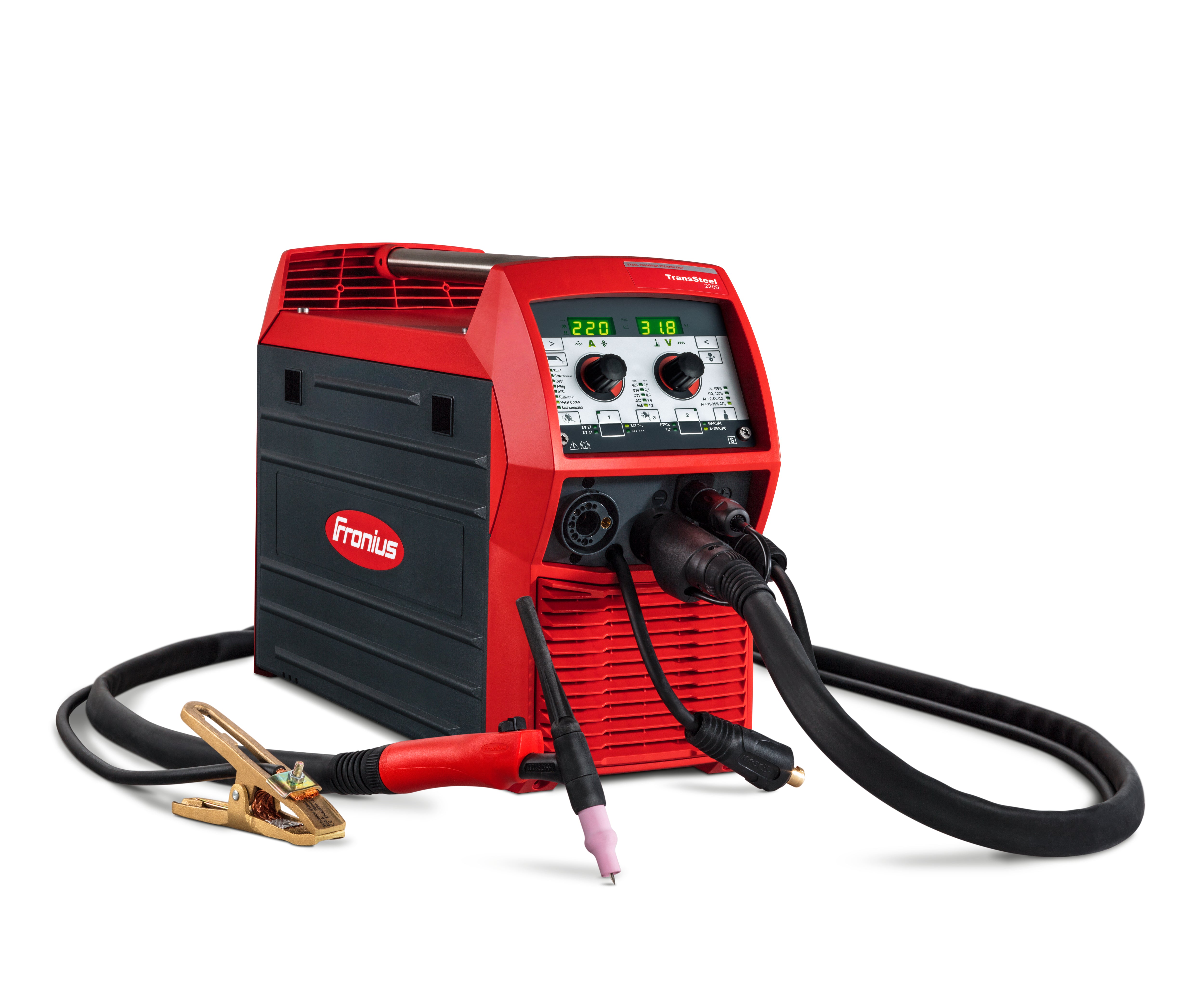

If purchasing the TIG option, a TIG Torch w/ consumable kit is included

CLICK HERE TO VIEW THE QUICK START GUIDE FOR THE 2200 (PDF)

CONSUMABLES AND REPLACEMENT PARTS LIST

• MTG 320i MIG Gun & Replacement Consumables - Click Here
• TTG2200A Replacement TIG Torch (for TIG Version) - Click Here
• Drive Rollers - Click Here

 TECHNICAL SPECIFICATIONS

The Fronius TransSteel 2200 is a compact, 3-in-1 welding solution and we want to be the first to introduce you to this fantastic welder. It is the very first single-phase inverter power source from Fronius that is also multiprocess-capable, bringing together MMA, MIG/MAG and TIG in a compact single device. The TransSteel 2200 is characterized by the intelligent design of the device, ease of use, robustness and the high level of reliability that you've come to know with Fronius-branded equipment. Weighing only 15.5 kg (a little over 34lb), it is also one of the lightest devices on the market.

FREQUENTLY ASKED QUESTIONS ABOUT THE 2200:

Q. Does this unit come with a foot pedal, or can I purchase one separately?
A. No, the TransSteel 2200 (TIG Version) supports lift-arc TIG, and Fronius does not offer a foot pedal for it.

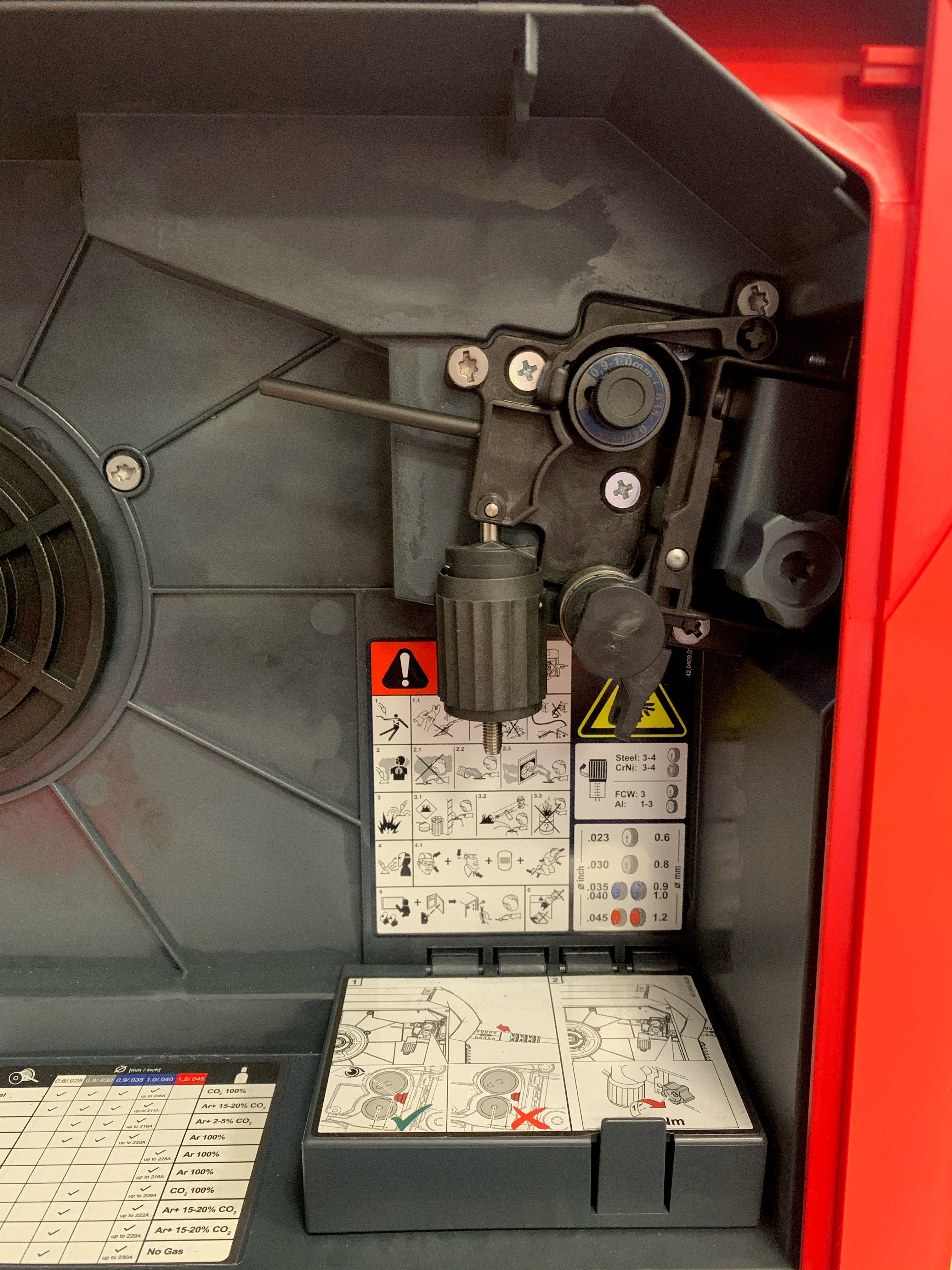

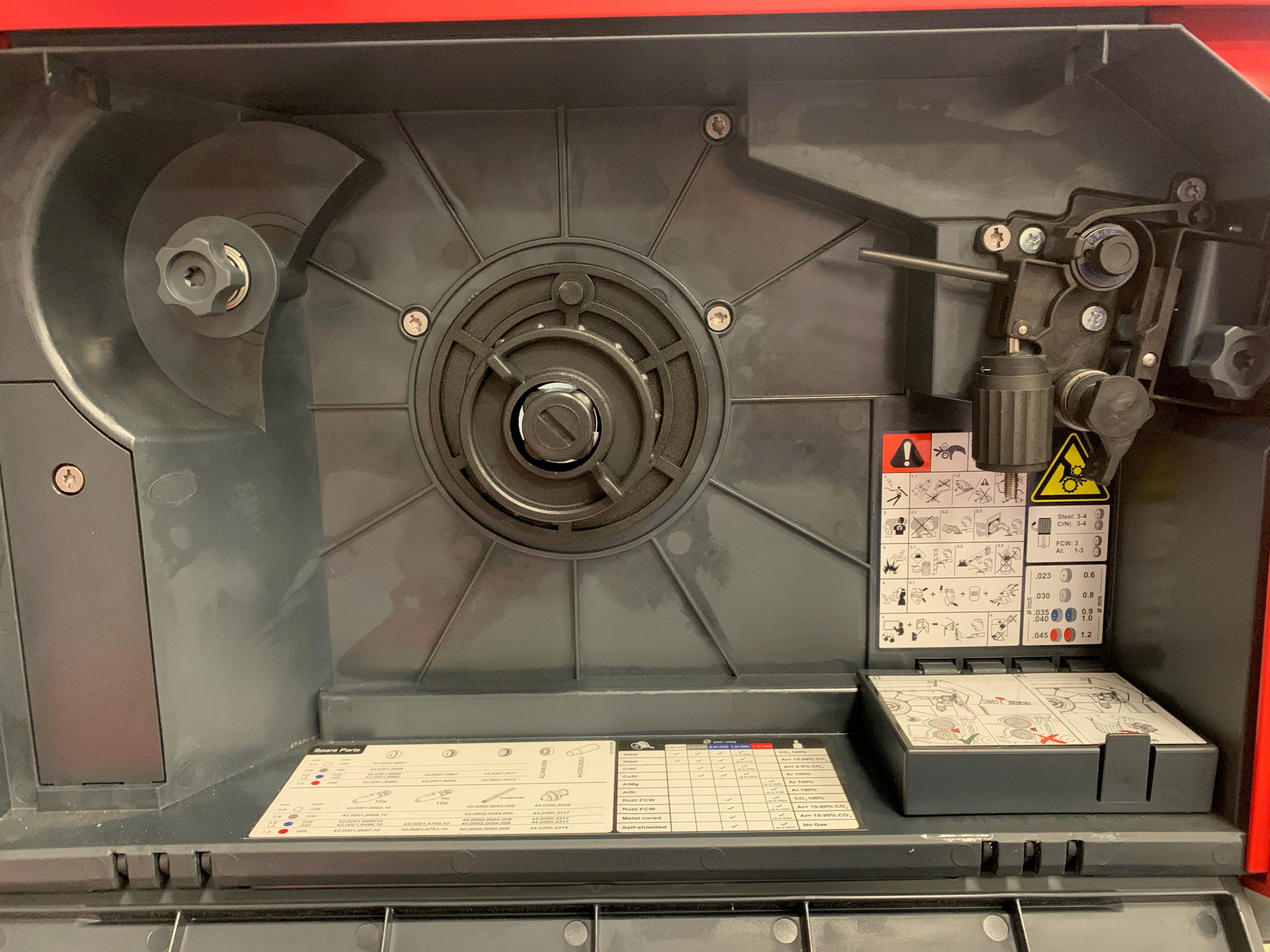

Q. What size wire spools fit in the 2200?
A. The TransSteel 2200 officially supports 1lb, 5lb and 10lb spools. It will also support most 11lb spools. It cannot hold a 1lb and a larger size at the same time. 33lb or 44lb spools WILL NOT fit this unit.

Q. What is the thickest material I can weld with this machine?
A. The general rule for possible material thicknesses is 1 amp per 0.001” of material thickness.  For MIG and TIG on 120V input power you can weld up to 3/16”. For 240V input power you can go up to ¼”.  You can also use SMAW on this machine and weld any thickness steel.

Q. Can I weld 6010 rod with this machine effectively?
A. The TransSteel line is not capable of running 6010 electrodes. The TransPocket series has a cellulose setting, in addition to the TPSi family because it has a constant power characteristic for stick welding which allows for cellulose rods to be used.

Q. Can the TransSteel 2200 do AC TIG?
A. No, the Fronius TransSteel 2200 is not capable of AC TIG.

Q. What consumables do I need to swap out to weld .045 aluminum wire?
A. To help with this common question we've put together a kit where you can buy everything other than the aluminum wire itself. The machine comes set up for .030/035 so you'd need to swap out the items on this list. Click here to view the .045 consumables kit.  You do not need a spool gun to use aluminum wire on this machine.

QUESTIONS? JUST ASK! WE'D LOVE TO HELP.

We have rockstar email support, if you haven't reached out to us before, you'll see right away what sets us apart from our competition.

The TransSteel 2200C comes with and without a TIG package. Be sure to select the option you want before adding to the cart.

 *Free shipping is not available in Alaska and Hawaii
