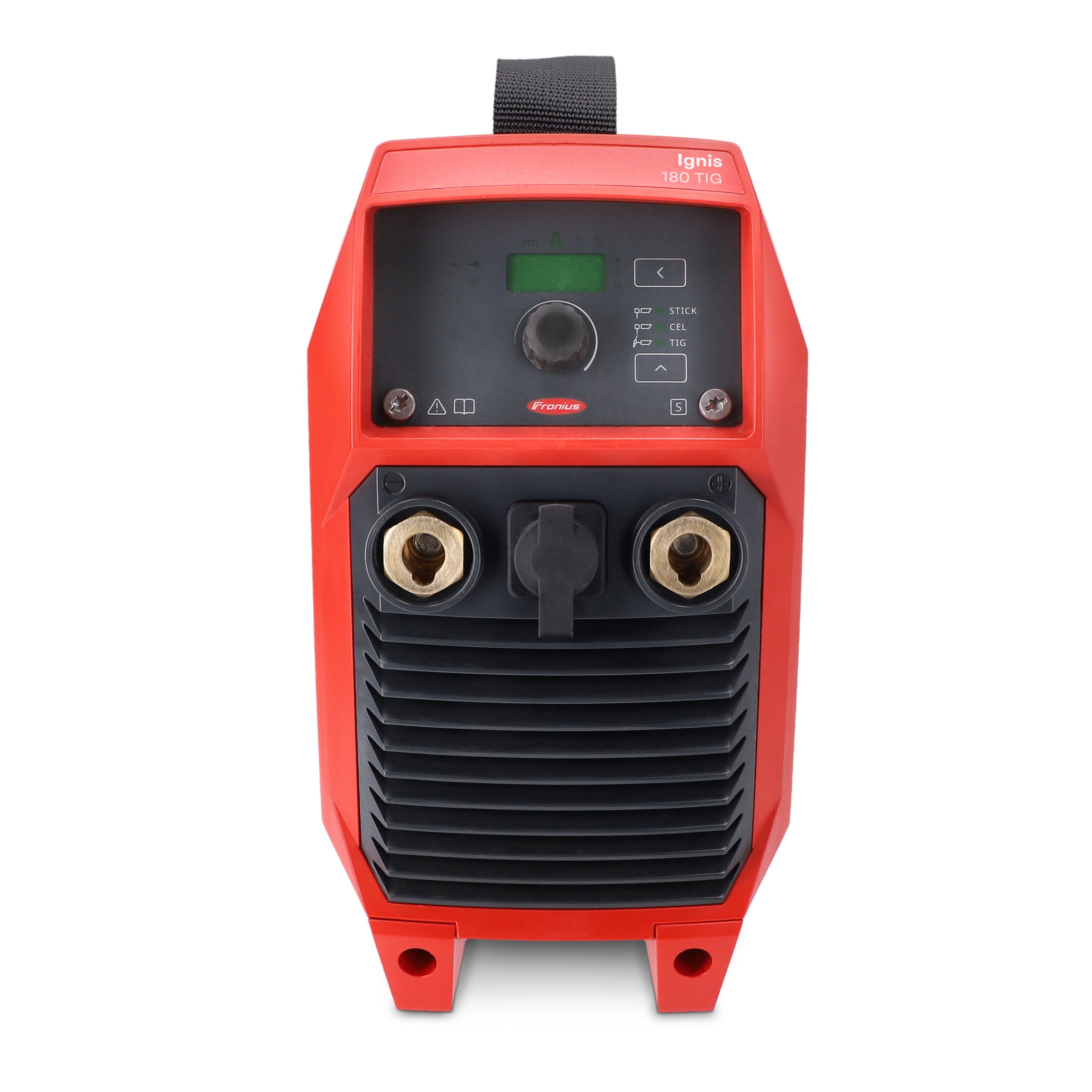

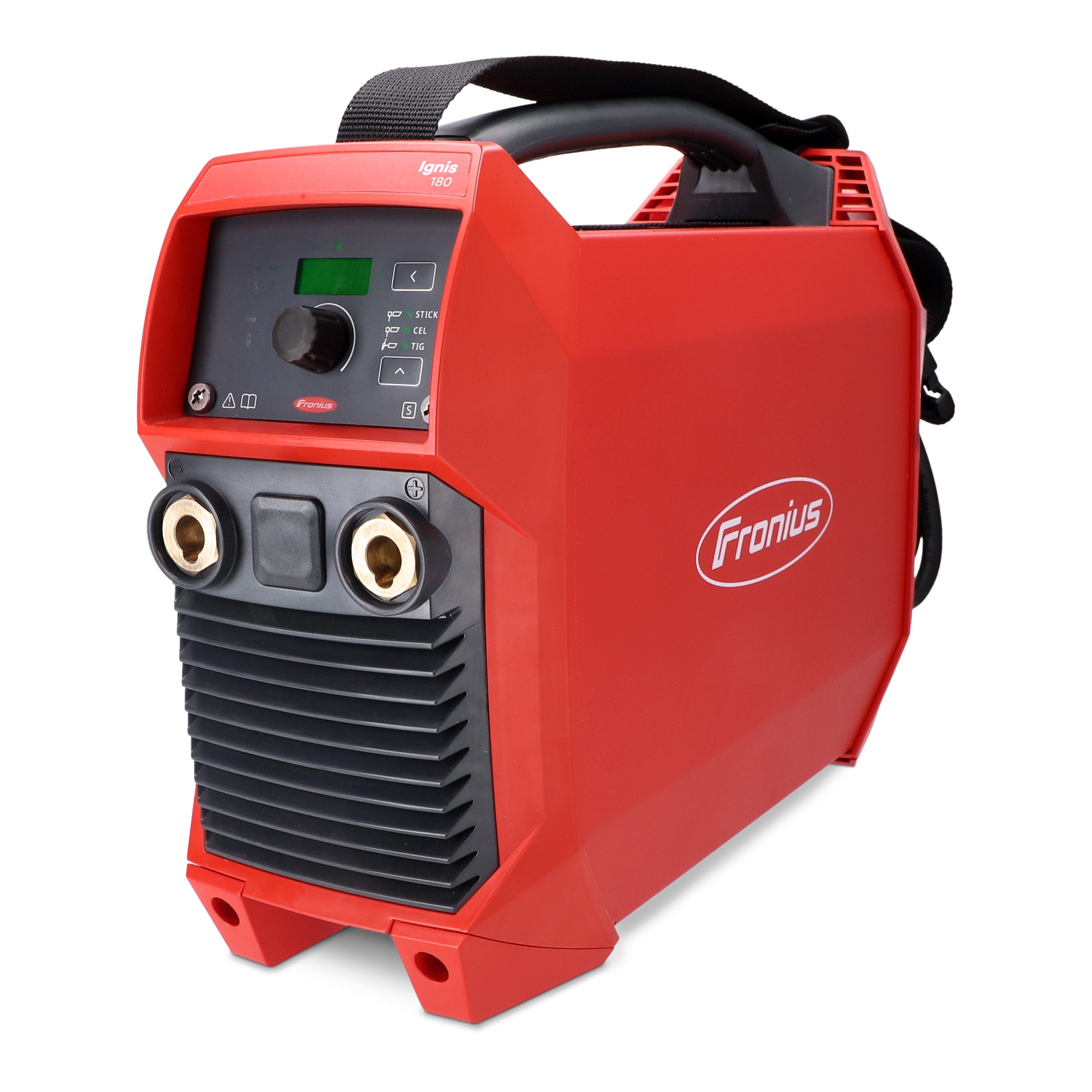

Fronius Ignis 180 XT Stick Welding Machine Package (49,0400,0002)

*This package currently out of stock. New units expected the week of 11/10/25.

MAIN FEATURES

• Only 19.4lbs (8.8kg)
• Comes with a carrying strap for portability
• High impact resistance
• Integrated dust filter
• Raised feet help to prevent water damage
• Designed for rough environments
• IP 23 Rated
• Anti-Stick: Allows welders to safely remove the electrode from the work piece after making contact.
• The Ignis 180 XT includes operating modes that are specifically designed for basic 7018 and cellulose 6010. Maximum electrode size is 5/32.

WHAT'S IN THE BOX?

• Ignis 180 XT Welder (4,075,213,631)
• 13ft electrode cable & electrode holder (43,0004,0478)
• 13ft ground cable & 400A ground clamp (43,0004,0161)
• 120v Power Cable NEMA 5-20 (43,0004,5668)

• 120v Power Cable NEMA 5-15 (43,0004,5666)
• 220/230v Power Cable NEMA L6-20 (43,0004,5801)
• Power Adapter 6-50p (42,0440,0227)
• Power Box Portable Carrying Case w/ Wheels (42,0510,0235)


• TIG Torch compatible with Stick Package sold separately (4,035,864).

TECHNICAL SPECIFICATIONS

Unit Weight: 19.4lb
Max Open Circuit Voltage: 101 V
Safety Symbols: UL, CSA

MACHINE SPECIAL FEATURES:

• Anti-Stick Setting:
• Allows user to safely and efficiently remove a stuck electrode from the work piece
• Hot & Soft Start:
• Gives welder ability to ignite the arc easier
• Power Factor Correction (PFC):
• Allow the use of long, very long extension cords without impacting the output power of the welder.  NO POWER LOSS!
• Time Shutdown (tsd):
• After set amount of time without welding the machine will turn off, saving energy.
• Cellulose Setting:
• Special settings to specifically weld 6010-cellulose stick rod.

FREQUENTLY ASKED QUESTIONS ABOUT THE Ignis 180 XT:

Q. Can the Ignis 180 XT handle 6010 cellulose rod?
A. Yes, there is a cellulose setting that works great for 6010 rod
