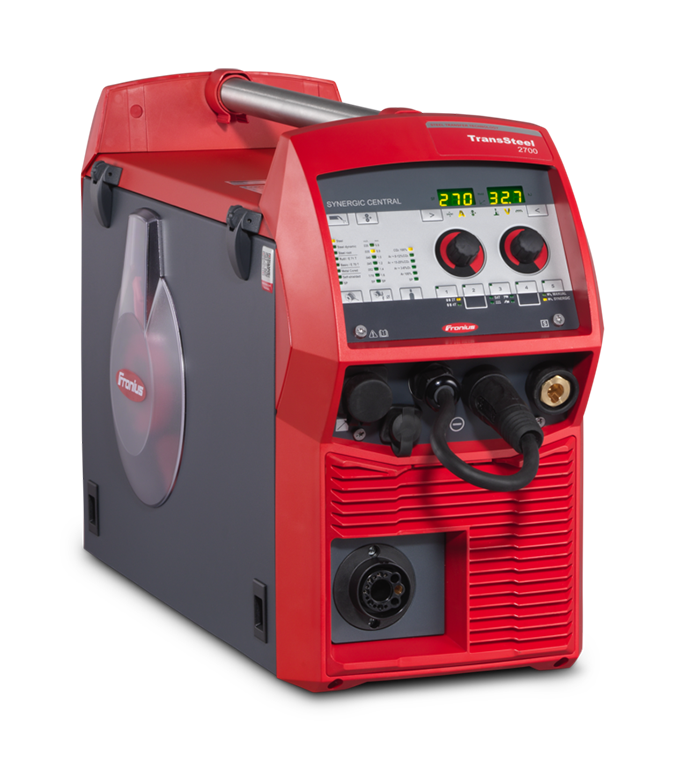

Fronius TransSteel 2700 MIG Welder Package - 109246

Product Description

This item has an extended lead time of 15 business days*

  • Fully digital synergic inverter
  • Steel transfer technology
  • Color-coded consumables
  • All-in-one welding torch connection (FSC)
  • Rugged design
  • Highly adaptive arc

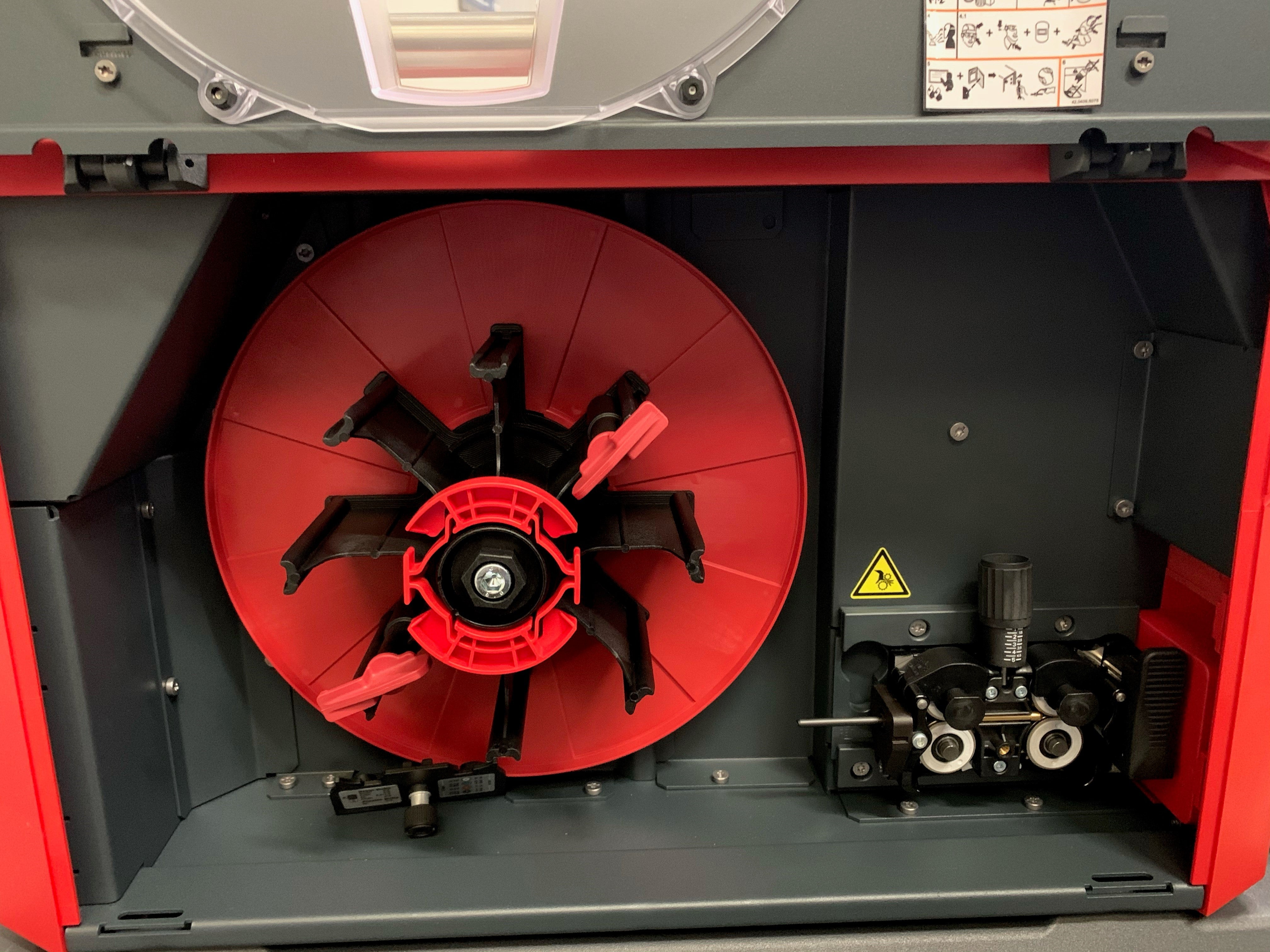

  • Window for wirespool


1 x 240 Vac (-10% / + 15%)
3 x 230 Vac (-10% / +15%)
3 x 460 Vac (-10% / +15%)

This machine will come with an 8ft power cable, plug to be supplied by customer.


  • 1 x TransSteel 2700c Power Source
  • Carriage Pickup 5000
  • I-kit, connection plate
  • 4 x 030 Drive Rolls
  • 4 x 035 Drive Rolls
  • 1 x 030 & 035 liner
  • TransSteel Cart
  • Flow Meter
  • Adapter Gas TPS 2700
  • Ground Cable 50mm 13ft
  • MTG 320i US Style torch 15' 60°

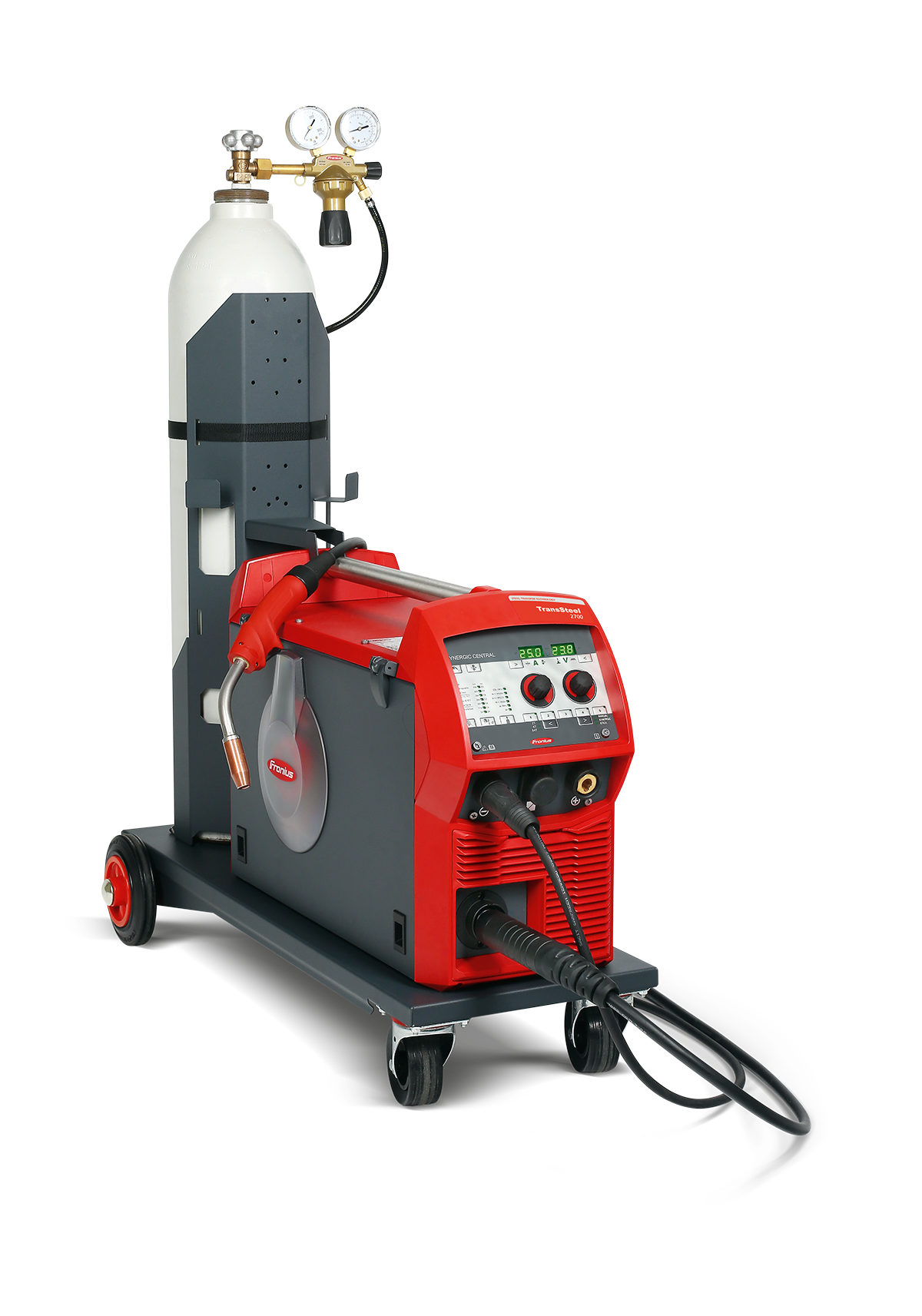

Cylinder shown in image is not included.


Welding current max. 270,0 A
Welding current min. 10,0 A
Welding current / Duty cycle [10min/40°C] 270A / 30%
Welding current / Duty cycle [10min/40°C] 210A / 60%
Welding current / Duty cycle [10min/40°C] 170A / 100%
Operating voltage 14,5V - 34,9V
Open-circuit voltage 42,0 V
Mains frequency 50-60Hz
Mains voltage 3 x 380V / 400V / 460V
Mains fuse 16A
Dimension / b 10,87 in
Dimension / l 2,25 ft
Weight 65,49 lbs
Protection class IP23



Click here to view Fronius TransSteel 2700c Product Page on

Be sure to read through the description. Occasionally, images will be shown with accessories that are not included with the machine.

Fronius is known for bringing us the latest and greatest in durable, technologically advanced welding equipment, and the brand-new Fronius TransSteel 2700 machine is no exception. We strive to bring you the best in welding and safety, and this advanced air-cooled MIG Welder (MMA & MIG/MAG) package hits the mark. This machine comes with a 3 year manufacturer warranty for parts and labor.
