All Strong Hand Tools® Utility Clamps are made of high quality heat treated steel and nickel/chrome plated for strength and durability.

Specifications



Part No. Capacity Throat Depth Clamping Pressure Pads Rail Size Tapped Hole Weight
UD45-C3
(UD45M-C3)
4-1/2"
(114 mm)
3-1/4"
(83 mm)
500 LBS
(227 kg)
Standard 5/8 x 5/16"
(16 x 8 mm)
5/16-18
(M8)
1.3 LBS
(0.6 kg)
UD65-C3
(UD65M-C3)
6-1/2"
(165 mm)
3-1/4"
(83 mm)
500 LBS
(227 kg)
Standard 5/8 x 5/16"
(16 x 8 mm)
5/16-18
(M8)
1.6 LBS
(0.7 kg)
UF65-C3
(UF65M-C3)
6-1/2"
(165 mm)
4-3/4"
(120 mm)
1,000 LBS
(454 kg)
Standard 7/8 x 7/16"
(22 x 11 mm)
3/8-16
(M10)
2.9 LBS
(1.3 kg)
UG85-C3
(UG85M-C3)
8-1/2"
(216 mm)
4-3/4"
(120 mm)
1,200 LBS
(544 kg)
Standard 1 x 15/32"
(25 x 12 mm)
3/8-16
(M10)
4.1 LBS
(1.9 kg)
UG125-C3
(UG125M-C3)
12-1/2"
(318 mm)
4-3/4"
(120 mm)
1,200 LBS
(544 kg)
Standard 1 x 15/32"
(25 x 12 mm)
3/8-16
(M10)
4.5 LBS
(2.1 kg)
UG1257-C3
(UG1257M-C3)
12-1/2"
(318 mm)
7" *Deep Throat
(180 mm)
800 LBS
(363 kg)
Standard 1 x 15/32"
(25 x 12 mm)
3/8-16
(M10)
6.5 LBS
(2.9 kg)
UM85P-C3
(UM85PM-C3)
8-1/2"
(216 mm)
5-1/2"
(140 mm)
2,400 LBS
(1,089 kg)
Standard 1-3/16 x 9/16"
(30 x 14 mm)
3/8-16
(M10)
6.6 LBS
(3.0 kg)
UM105P-C3
(UM105PM-C3)
10-1/2"
(267 mm)
5-1/2"
(140 mm)
2,400 LBS
(1,089 kg)
Standard 1-3/16 x 9/16"
(30 x 14 mm)
3/8-16
(M10)
7.4 LBS
(3.4 kg)
UM125-C3
(UM125M-C3)
12-1/2"
(318 mm)
5-1/2"
(140 mm)
2,400 LBS
(1,089 kg)
Heavy Duty 1-3/16 x 9/16"
(30 x 14 mm)
3/8-16
(M10)
7.6 LBS
(3.5 kg)
UM165-C3
(UM165M-C3)
16-1/2"
(419 mm)
5-1/2"
(140 mm)
2,400 LBS
(1,089 kg)
Heavy Duty 1-3/16 x 9/16"
(30 x 14 mm)
3/8-16
(M10)
8.7 LBS
(4.0 kg)
UM205-C3
(UM205M-C3)
20-1/2"
(521 mm)
5-1/2"
(140 mm)
2,400 LBS
(1,089 kg)
Heavy Duty 1-3/16 x 9/16"
(30 x 14 mm)
3/8-16
(M10)
9.8 LBS
(4.5 kg)
UP205-C3
(UP205M-C3)
20-1/2"
(521 mm)
7" *Deep Throat
(180 mm)
4,800 LBS
(2,177 kg)
Heavy Duty 1-9/16 x 3/4"
(40 x 19 mm)
3/8-16
(M10)
16.1 LBS
(7.3 kg)



SKU:IWD UM125

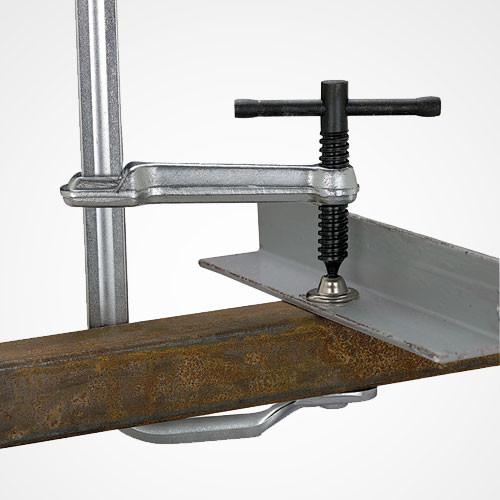

StrongHand UM125 Clamp
