3151

Top Features
  • Wide opening allows the Pipe Pliers to hold up to 2-1/2"(64 mm) diameter pipes.
  • Adjustable top spindle for holding pipes of varying sizes.
  • 2 large V-Pads provide a better clamping surface.
  • 0° & 45° angle clip allows angled clamping.



Specifications

Part No. OAL Top V-Pad Bottom V-Pad Throat Depth Opening Thread Weight
PG622V 6"
(150 mm)
Fixed Fixed 2"
(50 mm)
1" - 2"
(25 - 50 mm)
M8 0.8 LB
(0.4 kg)
PG634V 8-1/2"
(216 mm)
Fixed Fixed 3"
(76 mm)
2" - 3"
(50 - 80 mm)
M8 1.1 LBS
(0.5 kg)
PG635V 8-1/2"
(216 mm)
Adjustable Magnetic
0° & 45° rotatable
3"
(76 mm)
1-1/2" - 2-1/2"
(38 - 64 mm)
M8 1.2 LBS
(0.5 kg)
PG635VS 8-1/2"
(216 mm)
Adjustable
Stainless Steel
Stainless Steel
0° & 45° rotatable
3"
(76 mm)
1-1/2" - 2-1/2"
(38 - 64 mm)
M8 1.2 LBS
(0.5 kg)
PG114V 11"
(280 mm)
Fixed Fixed 3-1/2"
(89 mm)
1-1/2" - 2-1/2"
(38 - 64 mm)
3/8-16
M10
2.8 LBS
(1.3 kg)
PG115V
(PG115VM)
11"
(280 mm)
Adjustable Fixed 3-1/2"
(89 mm)
1-1/2" - 2-1/2"
(38 - 64 mm)
3/8-16
M10
2.9 LBS
(1.3 kg)
SKU:IWD PG114V

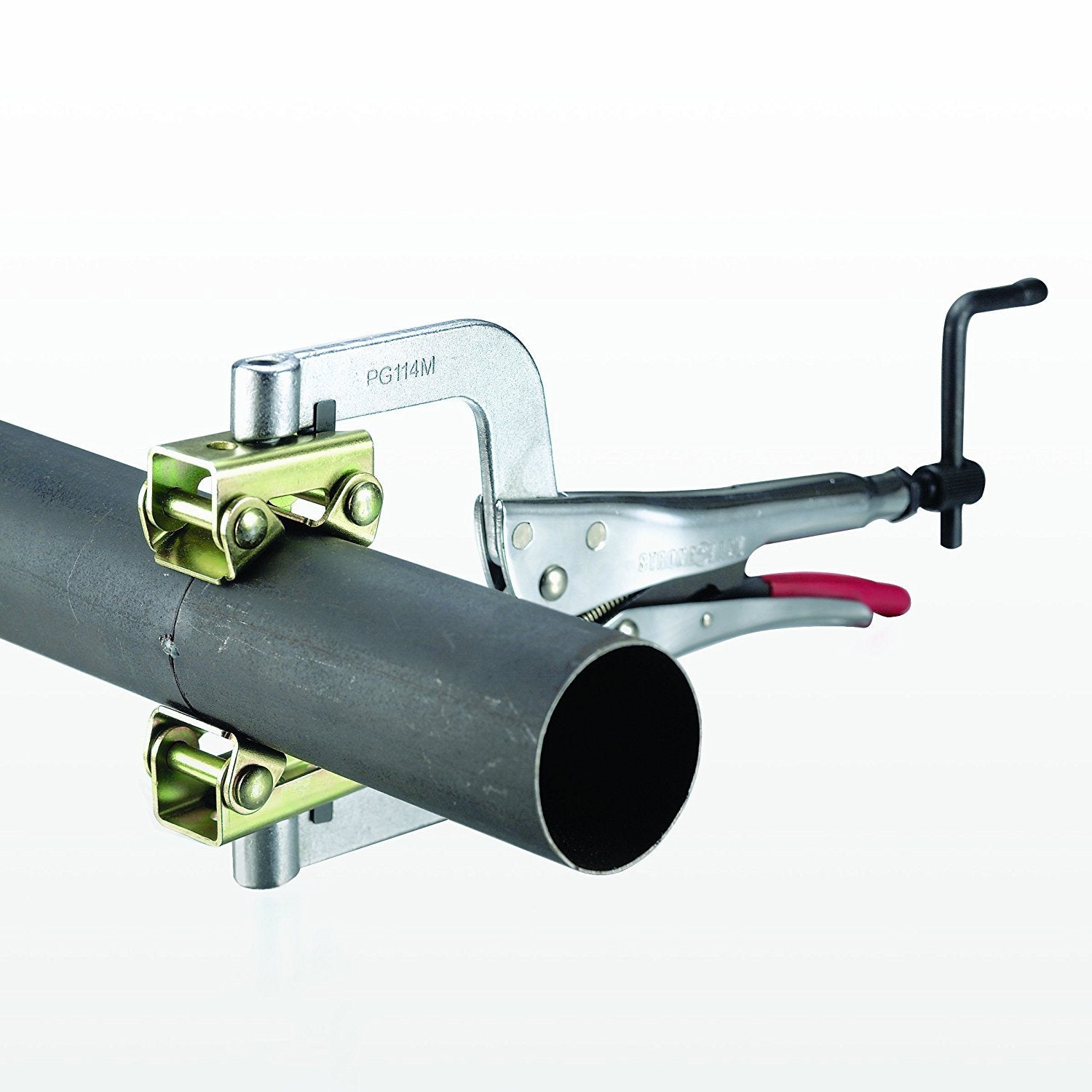

StrongHand PG114V Pipe Pliers
3151
