This item has an extended lead time*

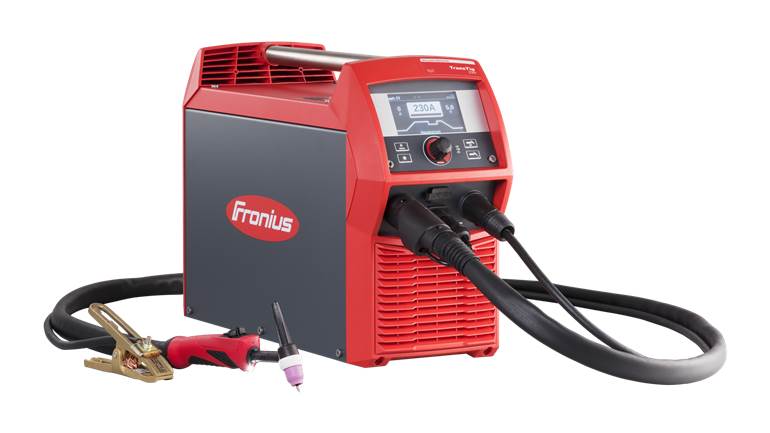

The Fronius TransTig 230i is a completely digitized TIG DC power source. Alongside the different power categories from 80 to 500 A, the devices also vary in their mobility – from the mobile, portable device to the stationary, high-power complete system. However, they all have one thing in common – an extremely robust design for a long service life and an exceptionally self-explanatory operating concept.


  • 230A DC welding power source (TransTIG 230i pre-assembled and tested)
  • Feeder spaceholder
  • Water-cooler with flow sensor
  • TIG torch, air-cooled, 26.3'
  • Ground cable, 13'
  • Flow meter with gas adapter


Welding current / Duty cycle [10min/40°C] 230A / 45%
Welding current / Duty cycle [10min/40°C] 205A / 60%
Welding current / Duty cycle [10min/40°C] 170A / 100%
Operating voltage 10,1-19,2V
Open-circuit voltage 97,0 V
Mains frequency 50-60Hz
Mains voltage 230V
Mains fuse 16A
Dimension / b 210,0 mm
Dimension / l 558,0 mm
Weight 16,4 kg
Degree of protection IP23
SKU:FRM 49,0400,0018
Fronius TransTig 230i Water-Cooled TIG/Stick Welding Machine - Free Shipping!
